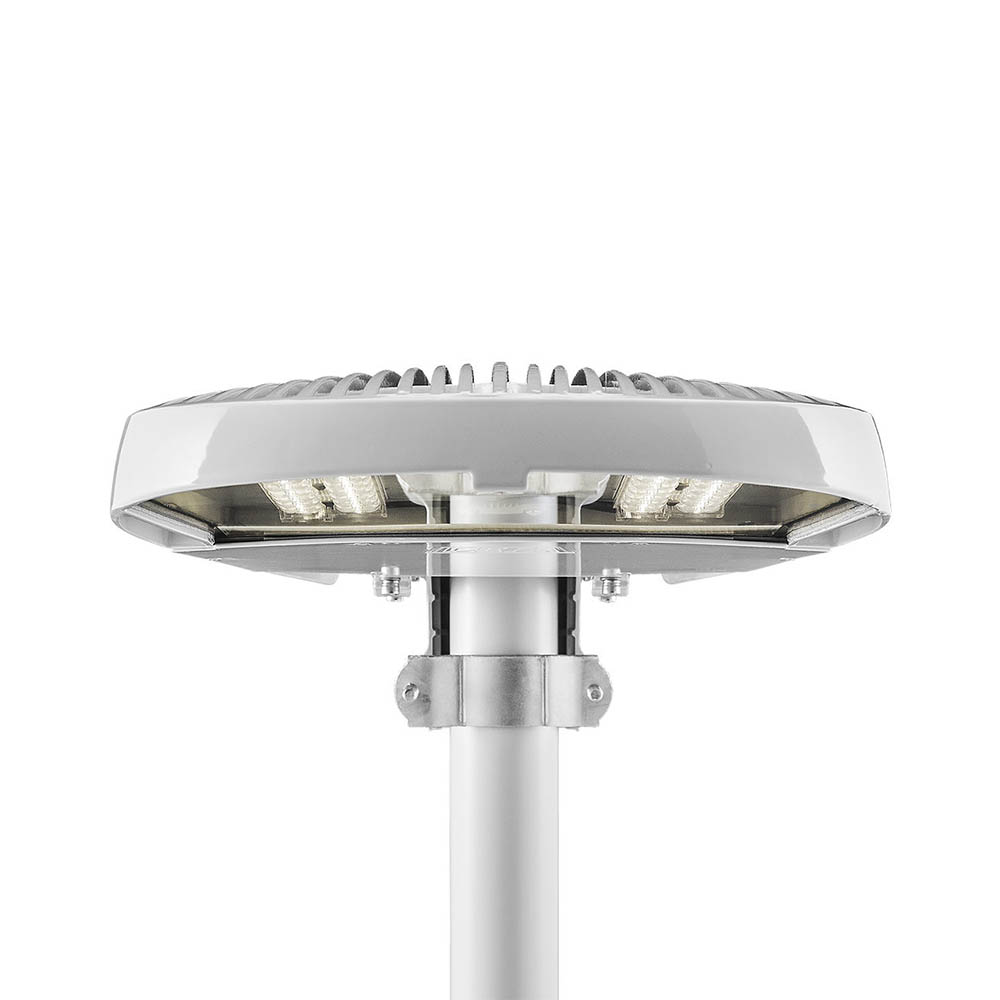

Elite large, in front

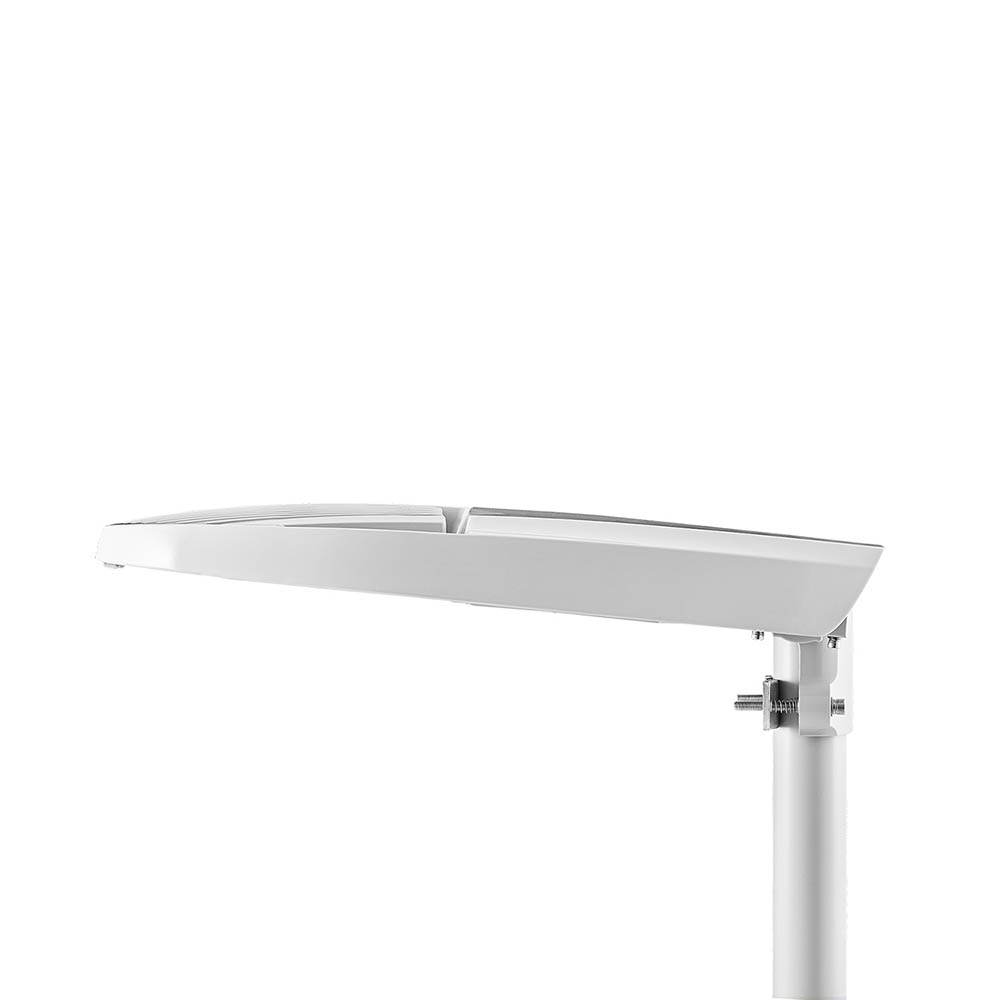

Elite large, in profile
Elite small, in front
Elite small, in profile

Elite Asymmetrical

LED floodlight

Efficient and easily installed street and road lighting with asymmetrical floodlight optics.

Item no: 125964
See specifications
Clear
Shortcuts:

Description

Elite Asymmetrical is a high-quality product that provides excellent efficiency, simple installation, and short payback time. It comes with Constant Light Output (CLO) as standard and is delivered ready for installation out of the box, with the cable already mounted. All components are integrated into the fitting to ensure the minimal build height and optimal cooling. Elite requires no maintenance.

Construction

The body is made from pressure die-cast aluminum powder painted in grey (RAL 7035). It has impact-resistant 5 mm flat glass. Corrosion class C5.

Elite Asymmetrical is designed for optimal heat transfer and a long lifetime.

Functionality

CLO – Constant Light Output as standard. It has an integrated 6kV Surge Protection Device.

Elite Asymmetrical application areas

This fitting has asymmetrical floodlight optics and is primarily designed for illumination of pedestrian crossings parking lots and other outdoor areas. This version is ideal for use in combination with the regular Elite Large and Elite Small.

The fitting complies with the EN 62471 requirement for photobiological safety.

Video:

Technical description

Accessories

123925  10kV Surge Protection Device with LED indicator
122520  Photo-cell kit – twilight relay (for Ledge small only)
119012  Wall bracket – Ø48×200 mm – 10o

Available on request

– NR – automatic Night Reduction
– 10kV Surge Protection Device
– Alternative effects and luminous flux
– Other cable lengths or Wieland quick connector
– Can be delivered with all open light control systems
– See separate product sheet for asymmetrical version
– Zhaga connector

Variant
125964
125963
122130
125983
125982
123910
124220
Version Light source Effect fitting Colour temperature Control Colour index Ra Life time h Wind surface Weight
Small 32LED 9000lm 56W Asym 4000K No >70 L90B10 100.000 0,032 m² 6kg
Small 32LED 8600lm 56W Asym 3000K 2xZhaga >70 L90B10 100.000 0,032 m² 6kg
Small 32LED 9000lm 56W Asym 4000K No >70 L90B10 100.000 0,032 m² 6kg
Large 48LED 18000lm 110W Asym 4000K No >70 L90B10 100.000 0,0433m² 11,3kg
Large 48LED 17000lm 110W Asym 3000K 2xZhaga >70 L90B10 100.000 0,0433m² 6kg
Large 48LED 18000lm 110W Asym 4000K No >70 L90B10 100.000 0,0433m² 11,3kg
Large 48LED 18000lm 110W Asym 4000K 2xZhaga >70 L90B10 100.000 0,0433m² 11,3kg

Mounting

The fitting is delivered with a connected 12m long (large) and 8m long (small) 2×2,5 mm² cable. The fixing bracket is made from die-cast aluminum and is reversible for mounting on arm or pole top Ø40-76mm. The fitting can be tilted in steps of 5°.

Downloads

Product sheet (pdf)
Photometrics ldt (zip)
Revit files rfa (zip)
Maintenance (pdf)
