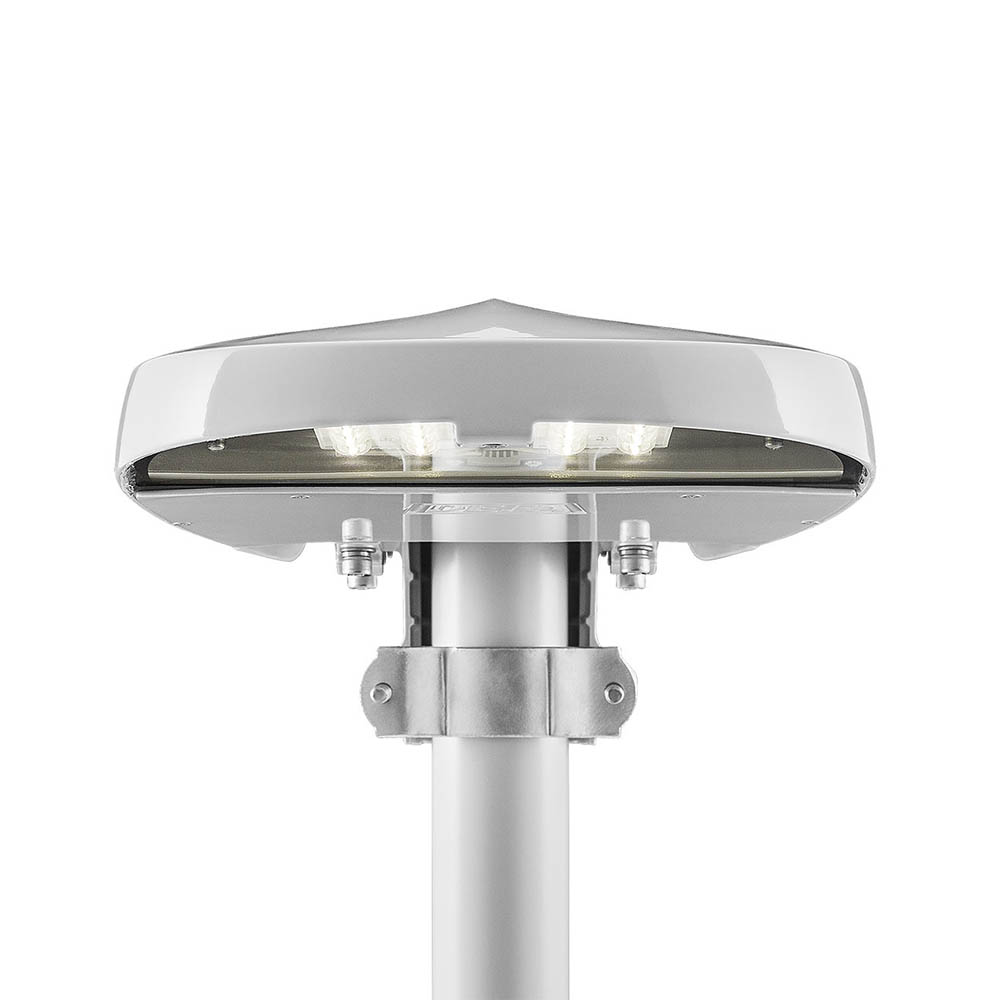

Elite small, in front

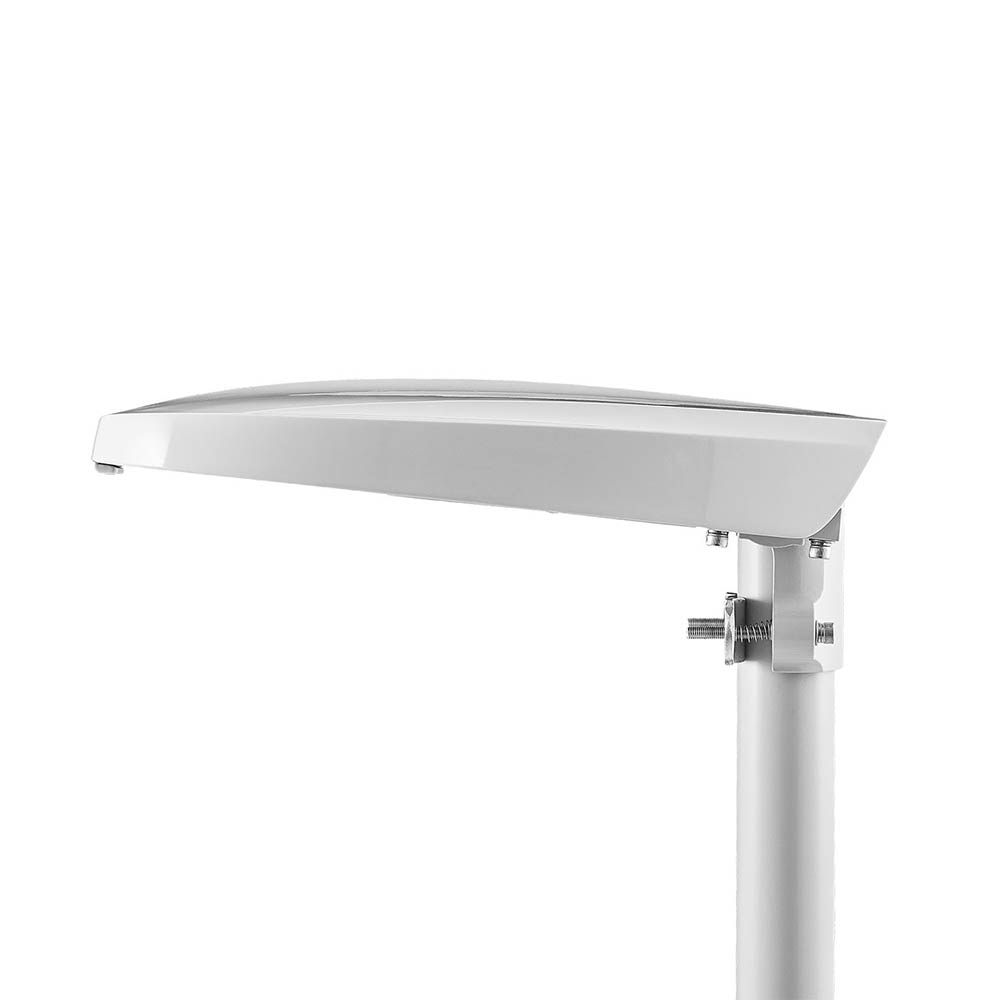

Elite small, in profile
Elite in floodlit track
Elite in floodlit track

Elite small

Street lighting

Elite small - 25% more efficient - several new versions. Elite offers premium energy efficiency, simple mounting and sleek design.

Item no: 125966
See specifications
Clear
Shortcuts:

Description

Elite small is a modern, flexible street light that provides first-rate light quality and efficiency, simple installation, and short payback time. It comes with Constant Light Output (CLO) as standard, and we deliver it ready for installation out of the box. All components are integrated into the fitting to ensure the best possible functionality, minimal overall height, and optimal cooling. Elite requires no maintenance.

Elite Small functionality

Constant Light Output (CLO) as standard. It has an integrated 6kV Surge Protection Device.

Construction

The body is made in pressure die-cast aluminum with powder painted in grey (RAL 7035). The corrosion class is C5. It has impact-resistant 5 mm thick flat glass.

Elite Small is designed for efficient heat transfer and a long lifetime. It has a sleek surface with no visible cooling ribs. The fitting complies with the EN 62471 requirement for photobiological safety.

Application areas

Timeless design and street light optics makes Elite Small perfect for use along minor roads, tracks, footpaths, and parking areas. The wall fixing makes it suitable for mounting on buildings and other facilities.

Video:

Technical description

Accessories

122520   Photo-cell kit – twilight relay
123925   10kV Surge Protection Device with LED indicator
125510    Backlight cover kit – Elite small

Available on request

– 10kV Surge Protection Device
– Alternative effects and luminous flux
– Other cable lengths or Wieland quick connector
– Adaption for all open light control systems
– Night Reduction with other levels/time settings
– Photo-cell kit
– Zhaga connector

Variant
125966
123590
125978
125977
123610
123560
125975
125973
123620
123630
125970
125969
123670
123680
Light source Effect fitting Colour temperature Luminous flux fitting Luminous efficiency fitting Automatic Night Reduction Surge Protection Device Colour index Ra Life time h Wind surface Weight
8LED 2100lm 15W 3000K 2110 lm 140 lm/W No 6kV SPD >70 100 000 0,032 m² 6kg
8LED 2100lm 15W 4000K 2110 lm 140 lm/W No 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
16LED 4200lm 28W 3000K 4247 lm 150 lm/W No 6kV SPD >70 100 000 0,032 m² 6kg
16LED 4200lm 28W 3000K 4247 lm 150 lm/W Yes 6kV SPD >70 100 000 0,032 m² 6kg
16LED 4400lm 28W 4000K 4397 lm 157 lm/W No 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
16LED 4400lm 28W 4000K 4397 lm 157 lm/W Yes 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
24LED 6200lm 41W 3000K 6357 lm 153 lm/W No 6kV SPD >70 100 000 0,032 m² 6kg
24LED 6200lm 41W 3000K 6357 lm 153 lm/W Yes 6kV SPD >70 100 000 0,032 m² 6kg
24LED 6600lm 41W 4000K 6606 lm 161 lm/W No 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
24LED 6600lm 41W 4000K 6606 lm 161 lm/W Yes 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
32LED 8600lm 56W 3000K 8651 lm 152 lm/W No 6kV SPD >70 100 000 0,032 m² 6kg
32LED 8600lm 56W 3000K 8651 lm 152 lm/W Yes 6kV SPD >70 100 000 0,032 m² 6kg
32LED 9000lm 56W 4000K 9042 lm 159 lm/W No 6kV SPD >70 100 000 L90B10 0,032 m² 6kg
32LED 9000lm 56W 4000K 9042 lm 159 lm/W Yes 6kV SPD >70 100 000 L90B10 0,032 m² 6kg

Mounting

The fitting is delivered with a mounted 8m long 2×2,5 mm² cable. The fixing bracket is made in die-cast aluminum and is reversible for mounting on arm or pole top Ø40-76mm, can be tilted in steps of 5°.

Downloads

Product sheet Elite small (pdf)
Mounting Photocell (pdf)
NR - Night Reduction (pdf)
Photometrics ldt (zip)
Revit files rfa (zip)
Maintenance (pdf)
