DEFA Inverter 600W 12V, white background

Inverter 600W 12V

12V to 230VAC inverter

Efficient and easily installed inverter for 12V batteries. Designed for reliability and durability with heavy use and harsh conditions.

Item no: 702937
See specifications
Shortcuts:

Description

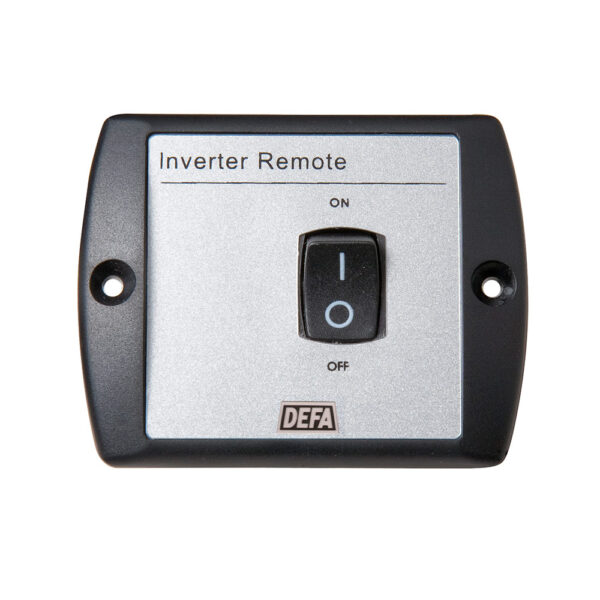

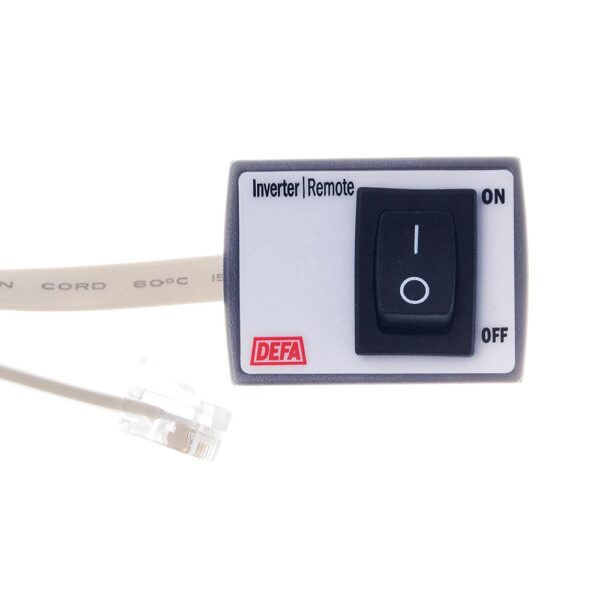

Our inverter 600W 12V is designed to withstand heavy use and to provide optimal charging. It can be connected to a remote control panel* and has a built-in power save mode. This mode reduces the consumption from the battery when the inverter is on but not in use. Our inverters provide pure sinus.

Use:

Inverter 600W 12V is ideal for supplying power to laptops, TV’s, sound systems, etc. Inverters require sufficient battery capacity, as the power consumption battery will be significant.

*Not included.

Technical description

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.

Input voltage
Constant output power
Peak power (10ms)
Output voltage, pure sine wave
No load power
Thermal protection, auto-shut off
Auto shut-off at
Alarm for low voltage
Input fuse
Operating temperature
Size
IP rating
Weight
Certification(s)
10-16V DC
600W
1200W
230V AC (± 5%)
0,6A
60°C (± 10)
16,0V (± 1,0)
10,5V (± 0,5)
32A (2)
-20°C / +60°C
324x170x68mm
IP20
3,5kg
EN61000-6-3 (EN55022), EN61000-6-2 (EN 61000- 2/3/4, EN61000-4-3), LVD 73/23/EEC (EN60335-1), e4-95/54/EC, RoHS 2002/95/EC

Mounting

Installation

Equipment damage and injury may result from improper installation and use. If you are unfamiliar with electrical systems: consult us, a dealer or a licensed electrician.

Use

The inverter should only be used indoors and not be exposed to rain or moisture. Make sure the connected battery is fully charged.

Switch off the inverter when not in use.

The inverters are equipped with protections against user error or faulty connection. Some errors will yield a warning sound. Never open the inverter yourself, repairs should only be carried out by qualified personnel, using original parts.

Maintenance

The inverter is maintenance-free.

Downloads

Product sheet (pdf)
User guide (pdf)
