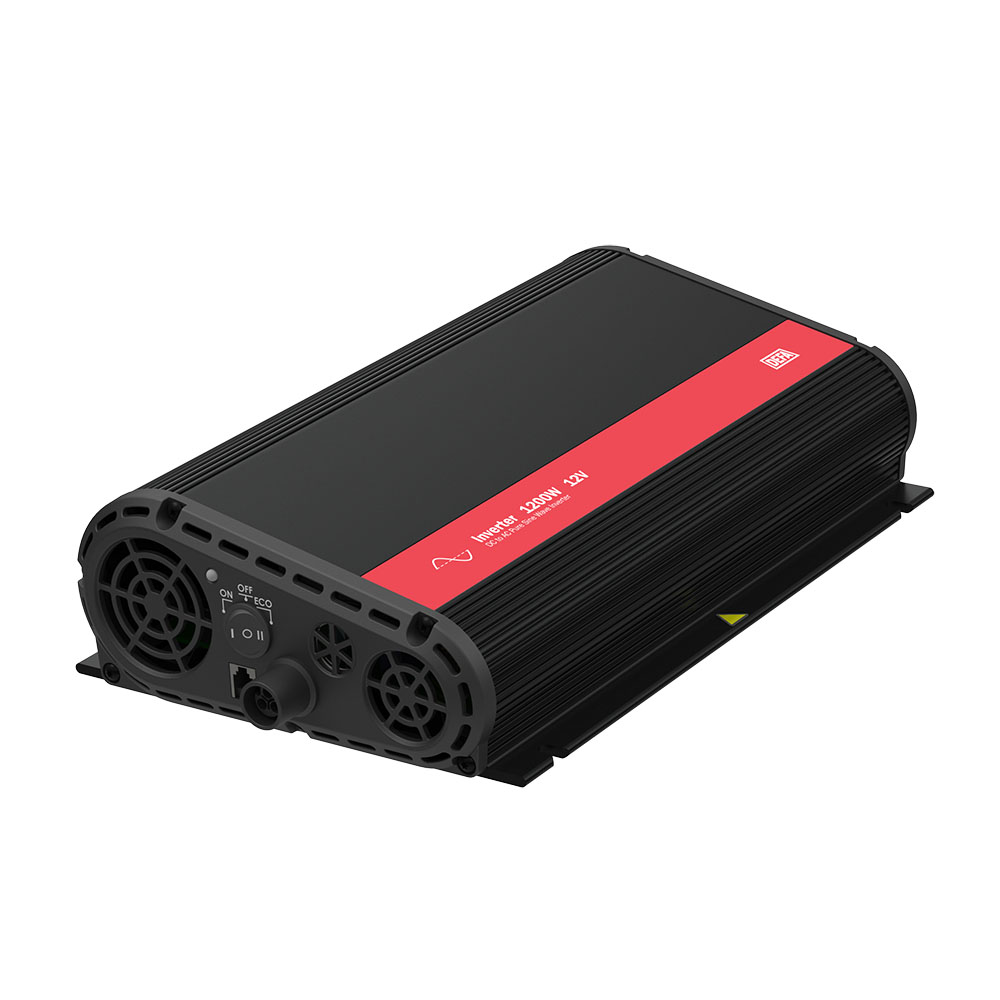

DEFA Inverter 1200W without transfer switch, side

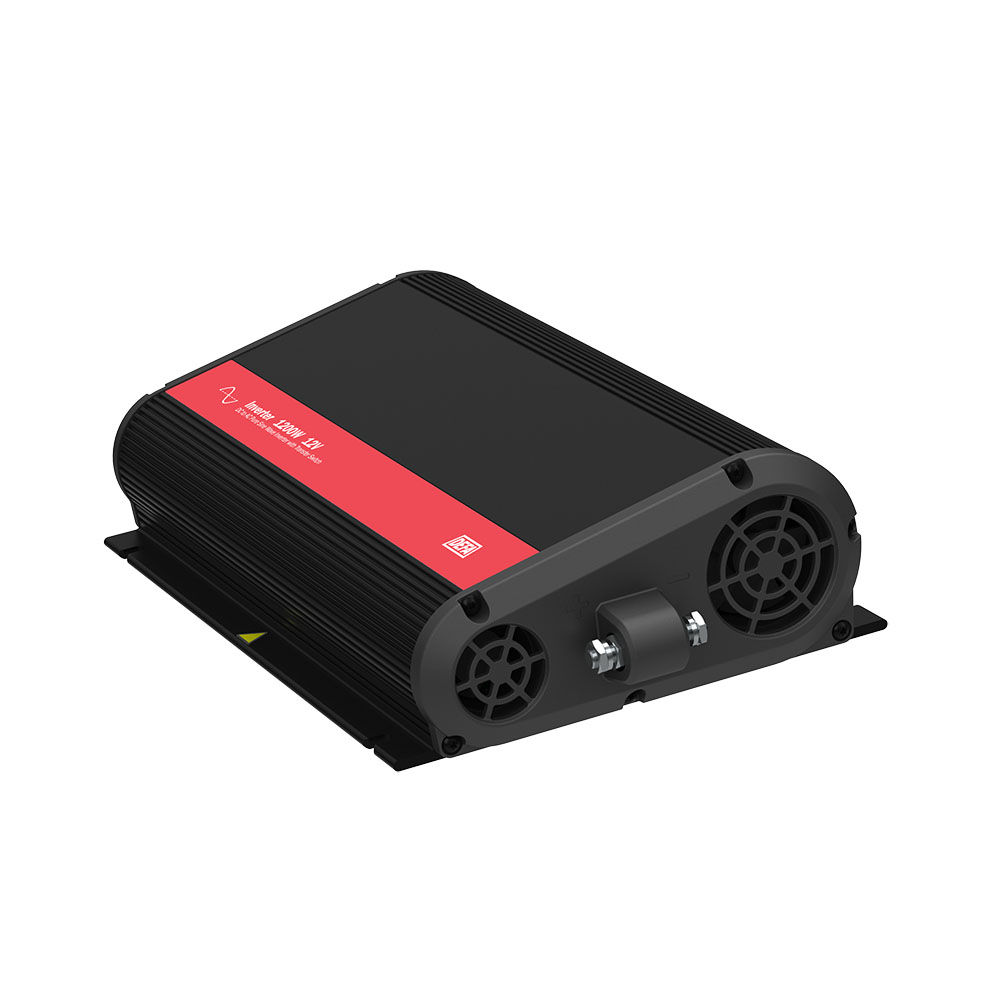

DEFA Inverter 1200W with transfer switch, back

InverterKit 1200W 12V

12V to 230VAC inverter

The kit consists of an inverter, a 2m extension cable, outlet, and a remote control panel. It can easily be expanded via the DEFA PlugIn system.

Item no: 715969
See specifications
Clear
For consumers:
🇧🇬🇷🇴🇬🇷Klema (Akulator) 🇬🇧🇳🇱Ripca BV Nederland
Shortcuts:

Description

The DEFA inverter 1200W 12V is highly efficient, easy to install, and provides reliable 230VAC power with pure sine. It can handle all modern alternators, and double-peak output ensures that it can start heavy motorized equipment. It is fully compatible with the DEFA PlugIn system, and you can easily install more 230V outlets in your vehicle.

InverterKit 1200W 12V contains:

  • 1x 709191 Inverter 1200W 12V without transfer switch
  • 1x 709340 remote control panel
  • 1x 704550 orange PlugIn extension cable (2m)
  • 1x 700401 single Schuko outlet / 1x 700403 double Schuko outlet

InverterKit 1200W 12V features:

Easy installation

Inverter 1200W 12V is 20% smaller than previous versions and is easy to mount even with minimal available space thanks to our unique PlugIn connector and cable system. Adding a remote control panel makes installation even more flexible.

ECO Mode

The new ECO Mode minimizes the drain from the battery when the inverter is not in use.

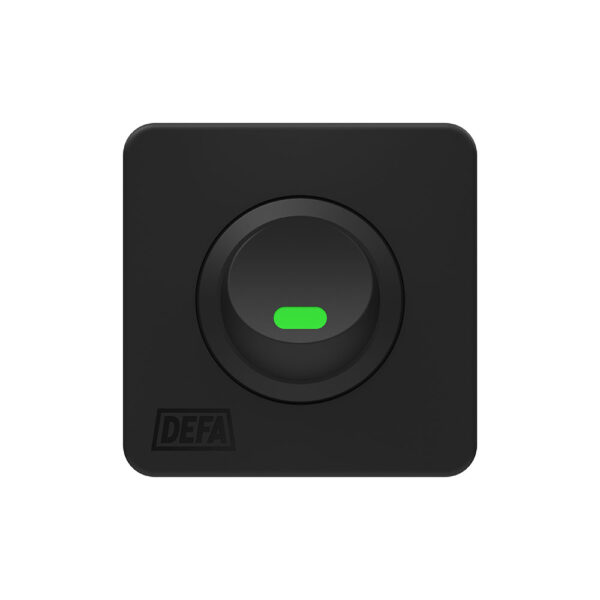

Remote Control Panel

This kit includes a remote control panel, which makes it possible to control the inverter from the driver’s compartment. The panel also makes the installation of the inverter more flexible since it can be mounted in locations where it’s not easily accessible.

Reduced noise

Because of the high current required to create 230VAC, inverters need fans to help prevent overheating. Our new inverter has a fan with variable speeds, which helps reduce noise when only limited cooling is required.

Consider installing a battery charger

Using an inverter requires a significant amount of power from your battery. In addition to having two batteries, we recommend that you install an onboard battery charger to maintain battery performance and life expectancy. Without frequent charging, your batteries will quickly drain and degrade. When this happens, you may no longer be able to start your vehicle or use your inverter.

Our onboard battery charger solutions are easily connected to and integrated with our inverters through the PlugIn system.

Technical description

DEFA AS is conforming to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition to this, our engine heaters and cables are conforming to the requirements of ISO/TS 16949:2002.

Variant
715969
711997
Power outlet Input voltage Constant output power Peak power (10ms) Output voltage, pure sine wave No load power Eco mode power Thermal protection, auto-shut off Auto shut-off at Alarm for low voltage Input fuse Operating temperature Size Weight
Single 10-16V DC 1200W 2400W 220-240V < 1,7A < 0,6 65°C H: 16,5V (± 0,5) / L: 10,0V (± 0,5) 10,8 (± 0,5) 40A (5) -30°C / +60°C 360x225x92,5mm 4,5kg
Double 10-16V DC 1200W 2400W 220-240V < 1,7A < 0,6 65°C H: 16,5V (± 0,5) / L: 10,0V (± 0,5) 10,8 (± 0,5) 40A (5) -30°C / +60°C 360x225x92,5mm 4,5kg

Mounting

Injuries and harm may result from incorrect installation and use of the charger. If you are unfamiliar with electrical systems; contact a licensed installer.

Read the mounting and user guides carefully.
