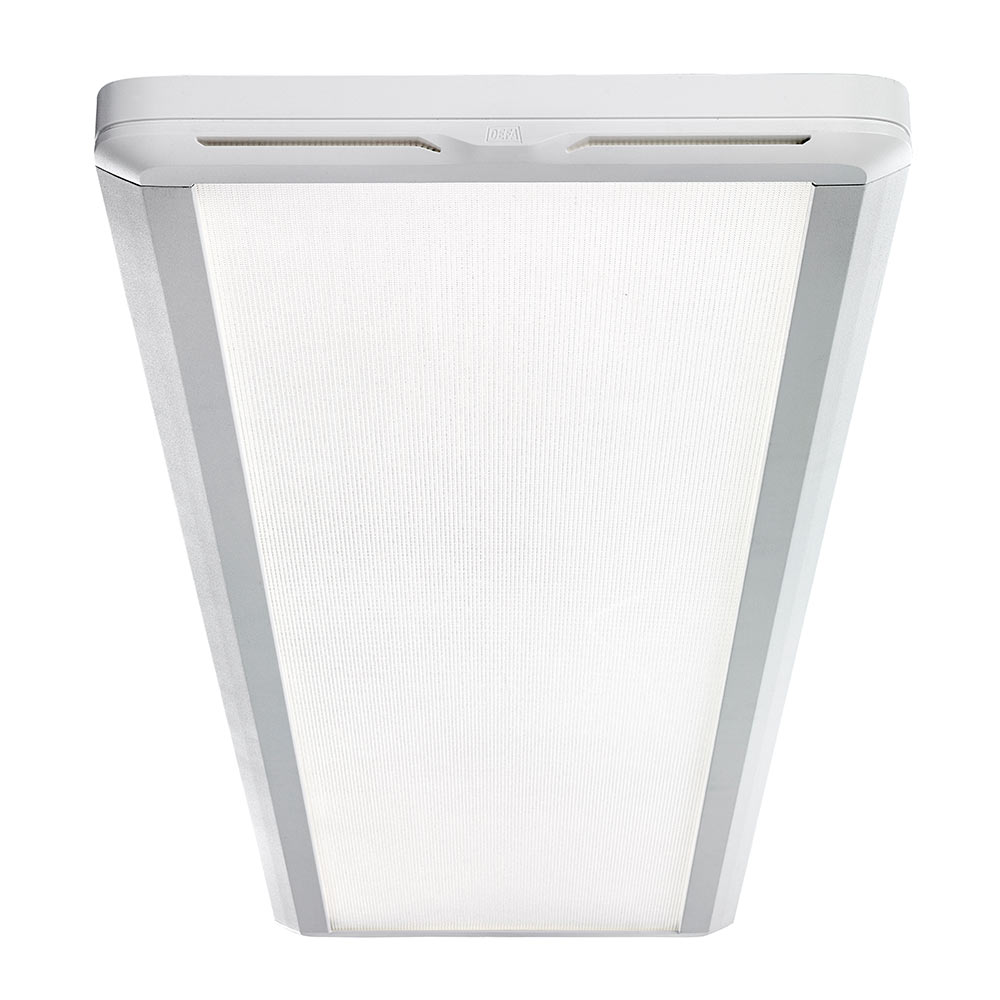

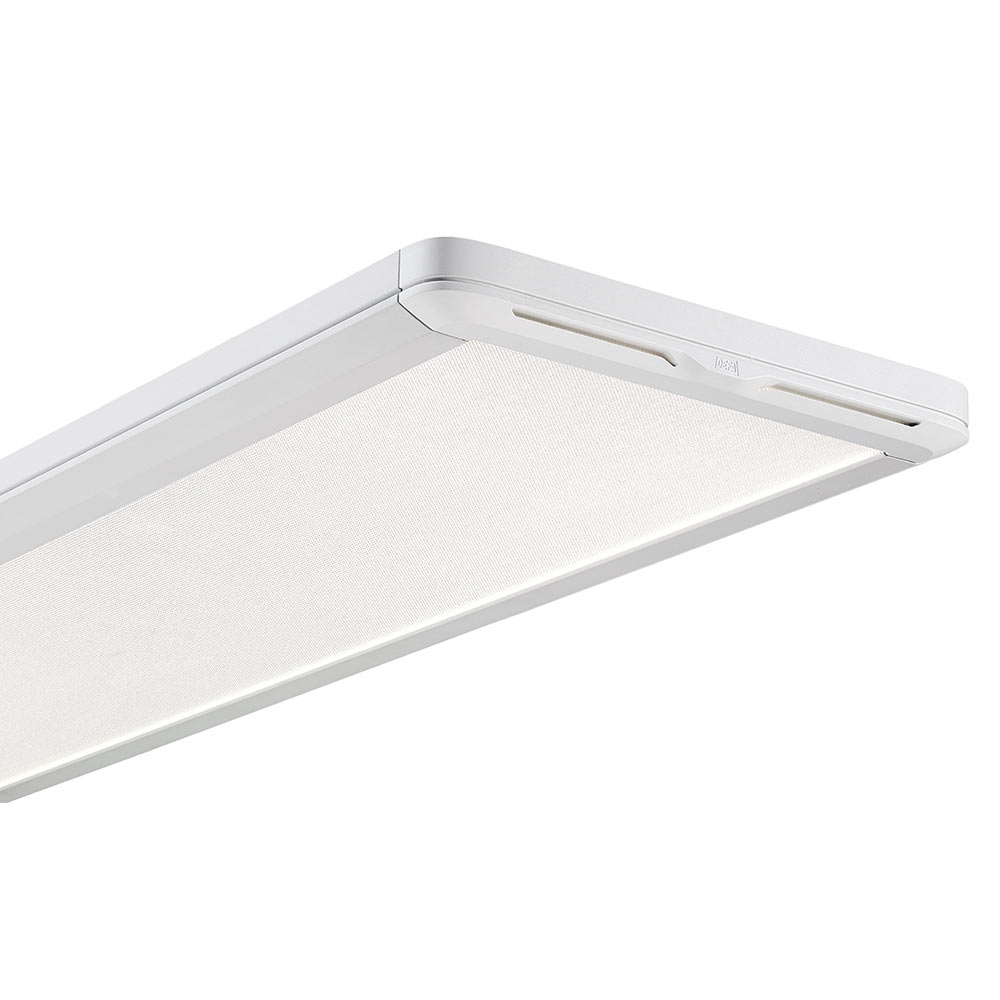

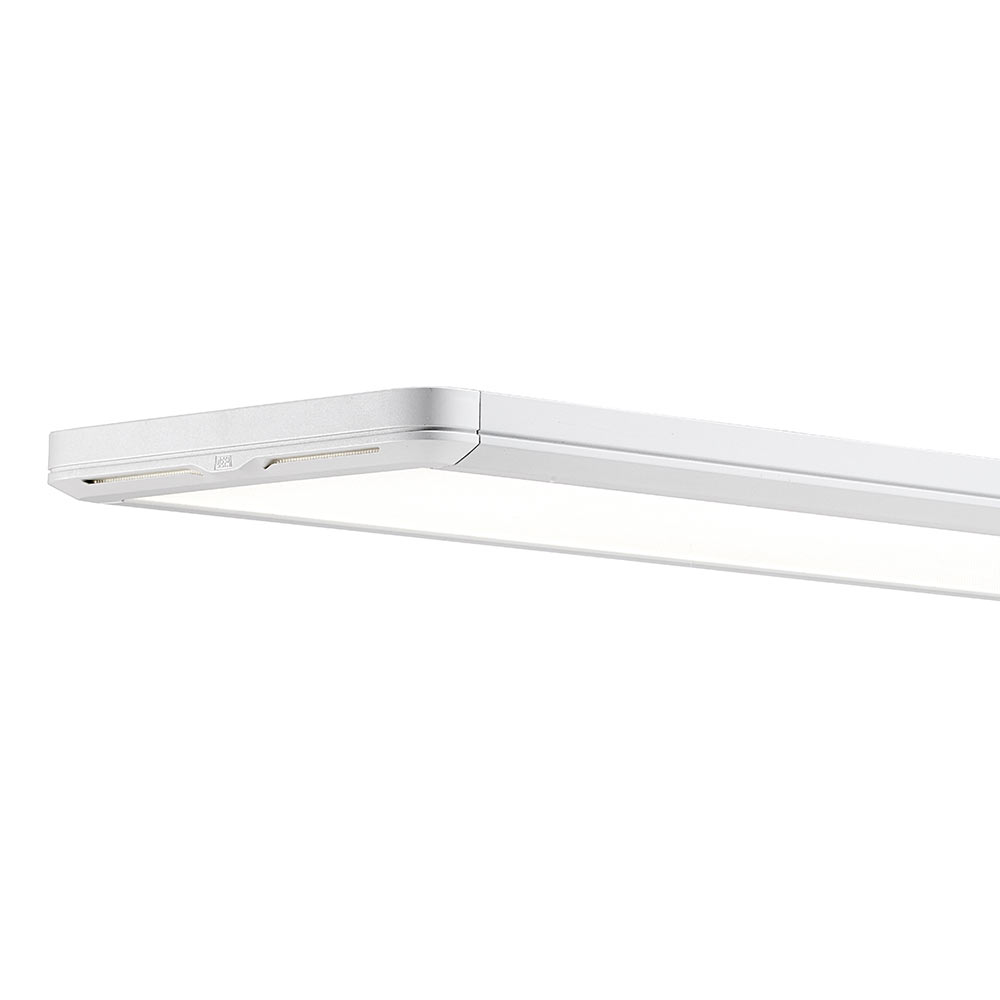

Ledge® Surface

New generation LED luminaire

Generation 2 - 40% more efficient – now with Human Centric Lighting (HCL). Excellent efficiency, simple installation, and a very low build height.

Item no: 119702
Clear

Description

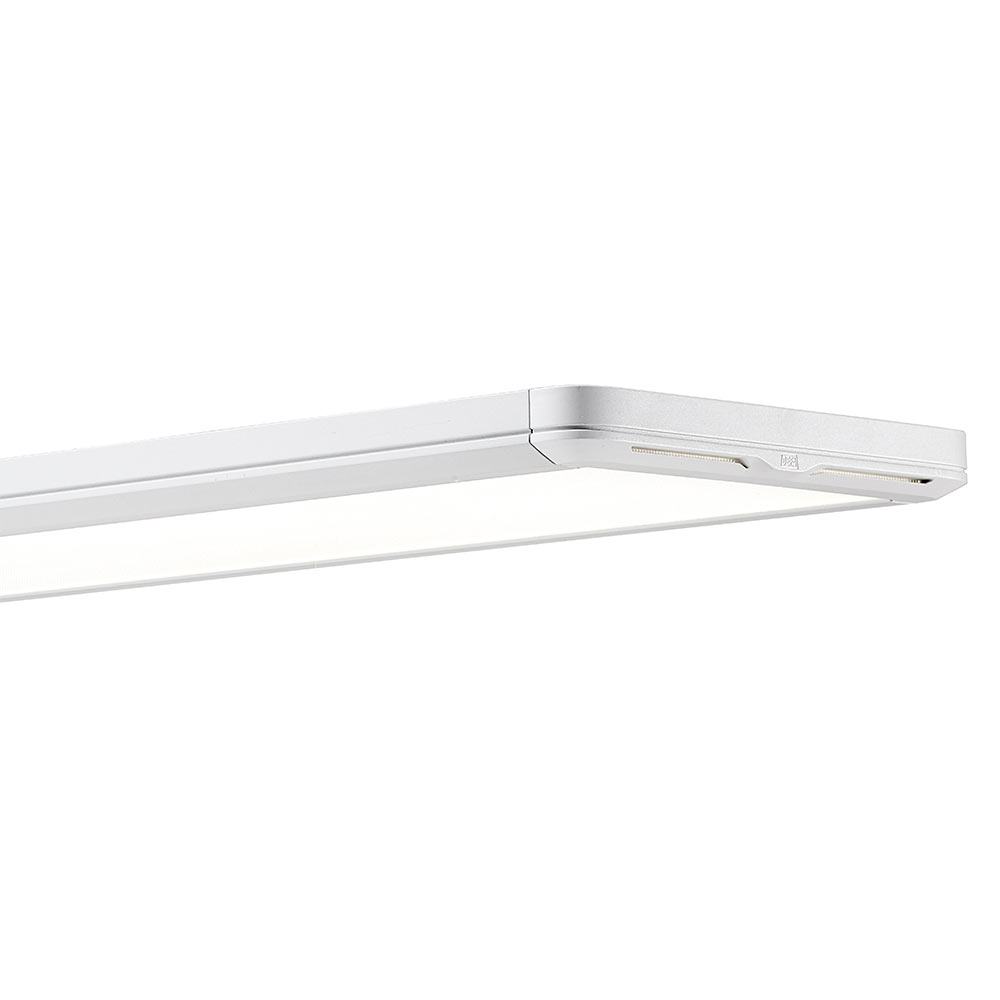

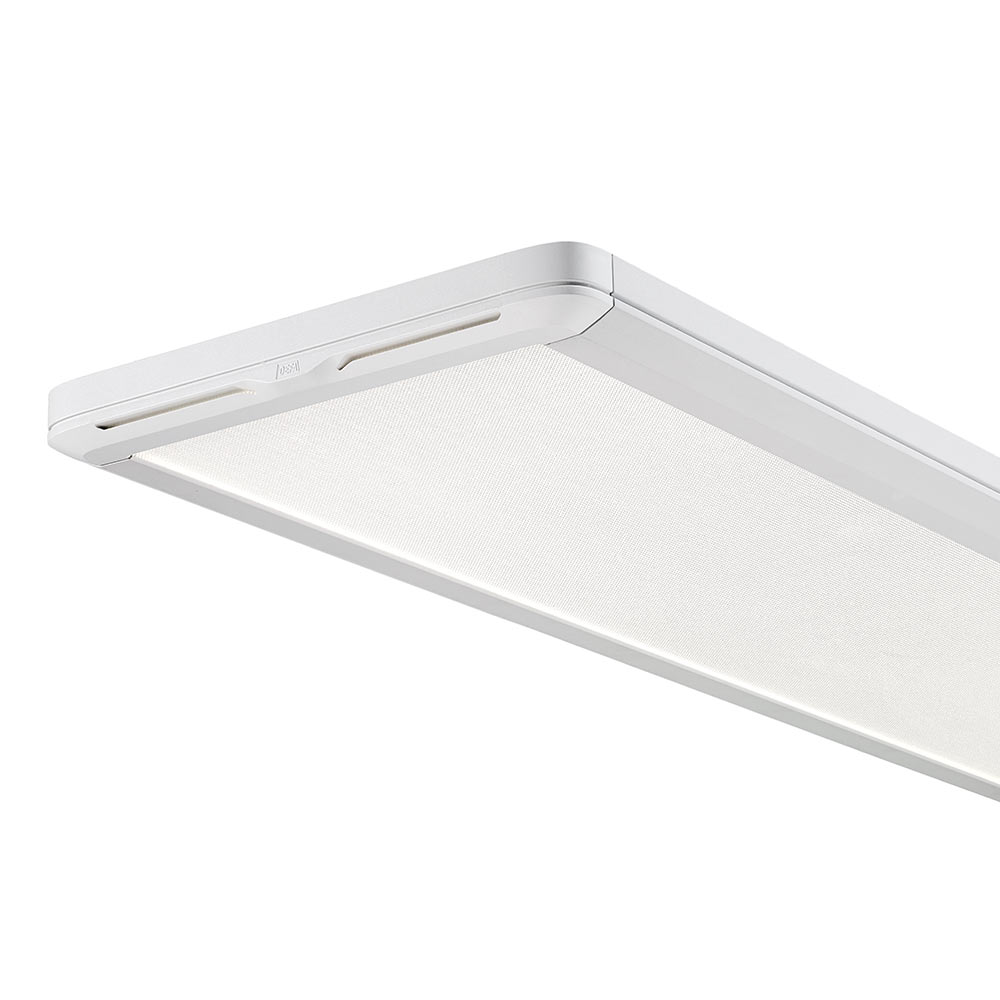

Ledge Surface is a high-quality luminaire that provides first-rate in light, efficiency, and design. It is developed to be easy to install and has a separate mounting plate with a click-in mechanism. The latest in Edge-lit technology and optics ensure that Ledge Surface delivers even light with very little glare. The fitting has a timeless design ideal for retrofit projects and has a build height of only 31 mm.

The side of fitting made in extruded aluminum and the endcaps in composite material. The Micro prismatic optics, Clear (PS).  Body surface has powder painted structure, white RAL 9016.

Optimized light – Energy efficient – long life time

– High luminous efficiency – lm/W
– Extremely low glear – UGR <19
– Colour temperature 3000K – 4000K
– Optimized Edge-lit technology
– High quality LED – 100.000 hr
– Optimal cooling and operation time

Discreet design – easy and quick installation

– Only 31 mm building height
– Separate mounting plate
– Pre installed with quick connectors between fitting and mounting plate
– ” Click-in system” – the fitting is installed

Control gear

All components are installed onto the mounting plate. There’s an electronic driver for the On/Off version and a digital DALI driver for the dimmable version.

HCL – Human Centric Lighting (Tunable White)

HCL versions are offering solutions that can produce light of different colours, colour
temperatures and intensity to provide ideal visual working conditions in challenging environments and/or stimulate the human circadian rhythm. HCL lighting technology produce light of different colours to create ideal visual working conditions to enhance human performance and wellbeing. The HCL versions are adapted for all recognized control systems.

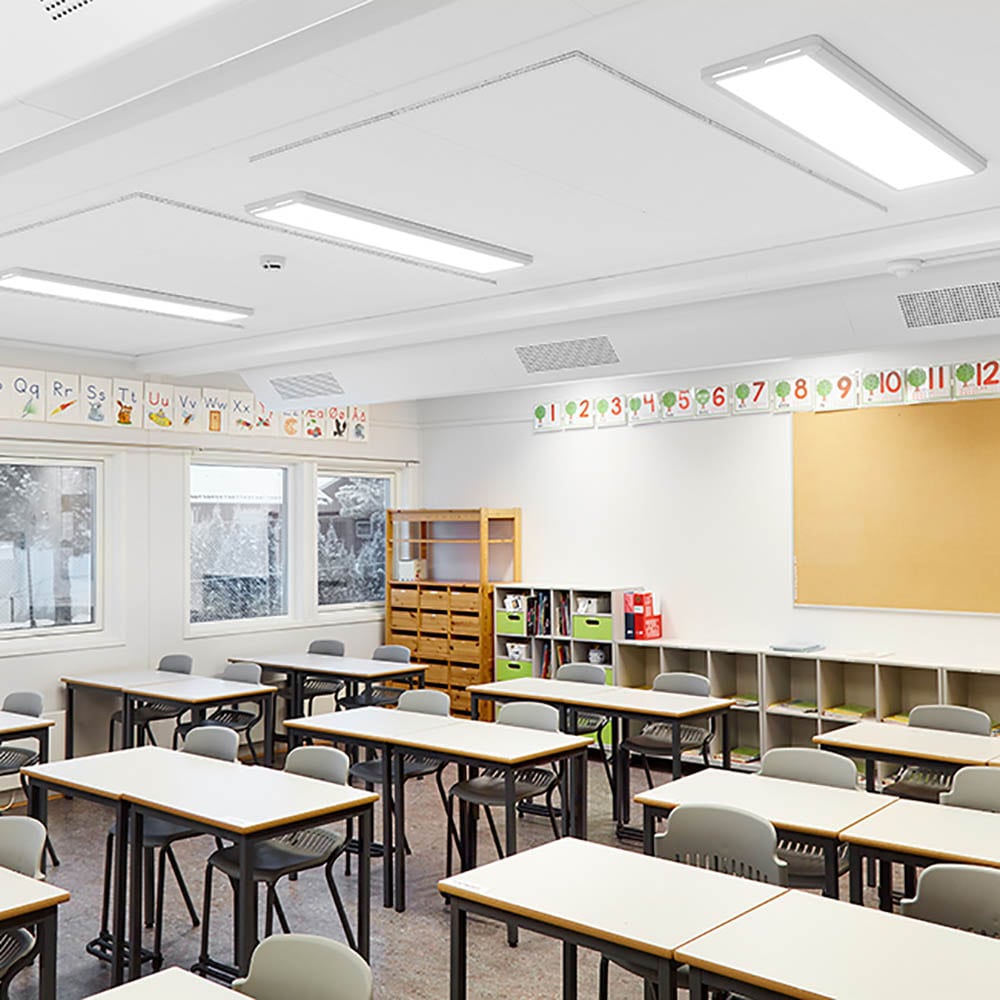

Application areas

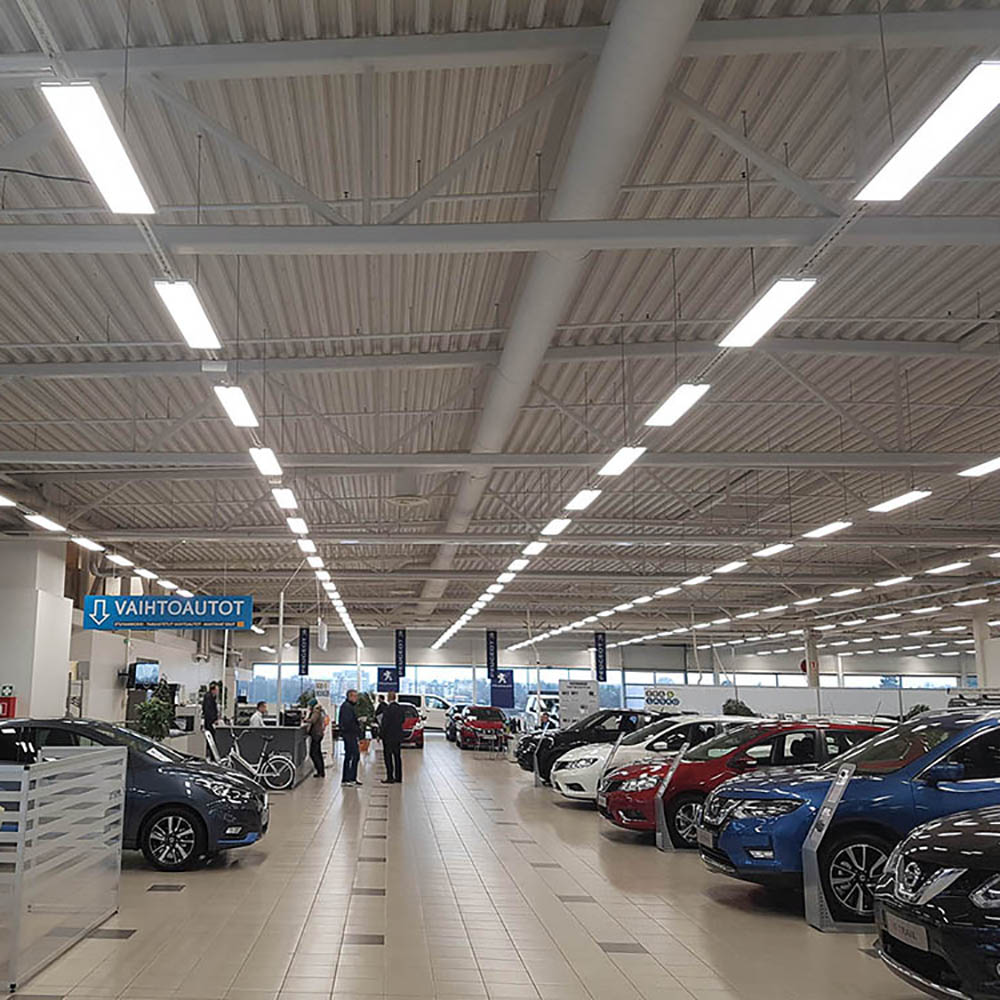

Corridor, shop, school etc…

Video:

Technical description

Variant
119702
119631
119703
119701
120850
121566
125185
125186
125187
125188
125189
125190
123220
Version Optics Control Colour temperature Effect fitting Luminous flux fitting Luminous efficiency fitting Colour index Ra Colour tolerance MacAdam Life time h Weight
G1 Microprism No 3000K 48W 4474 lm 94 lm/W >80 <3 L80B10 100.000 6,1kg
G1 Microprism DALI 3000K 48W 4474 lm 94 lm/W >80 <3 L80B10 100.000 6,1kg
G1 Microprism No 4000K 48W 4644 lm 97 lm/W >80 <3 L80B10 100.000 6,1kg
G1 Microprism DALI 4000K 48W 4644 lm 97 lm/W >80 <3 L80B10 100.000 6,1kg
G1 Microprism No 4000K 57W 5529 lm 97 lm/W >80 <3 L80B10 100.000 6,1kg
G1 Microprism DALI 4000K 57W 5529 lm 97 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism No 3000K 34W 4478 lm 132 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism DALI 3000K 34W 4478 lm 132 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism No 4000K 33W 4677 lm 142 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism DALI 4000K 33W 4677 lm 142 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism No 4000K 39W 5533 lm 142 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism DALI 4000K 39W 5533 lm 142 lm/W >80 <3 L80B10 100.000 6,1kg
G2 Microprism HCL-DALI 8 2700K-6500K 52W 5818 lm 112 lm/W >80 <3 L80B10 100.000 6,1kg
