New! ShowroomCharger 40-50A

Charger for dealerships

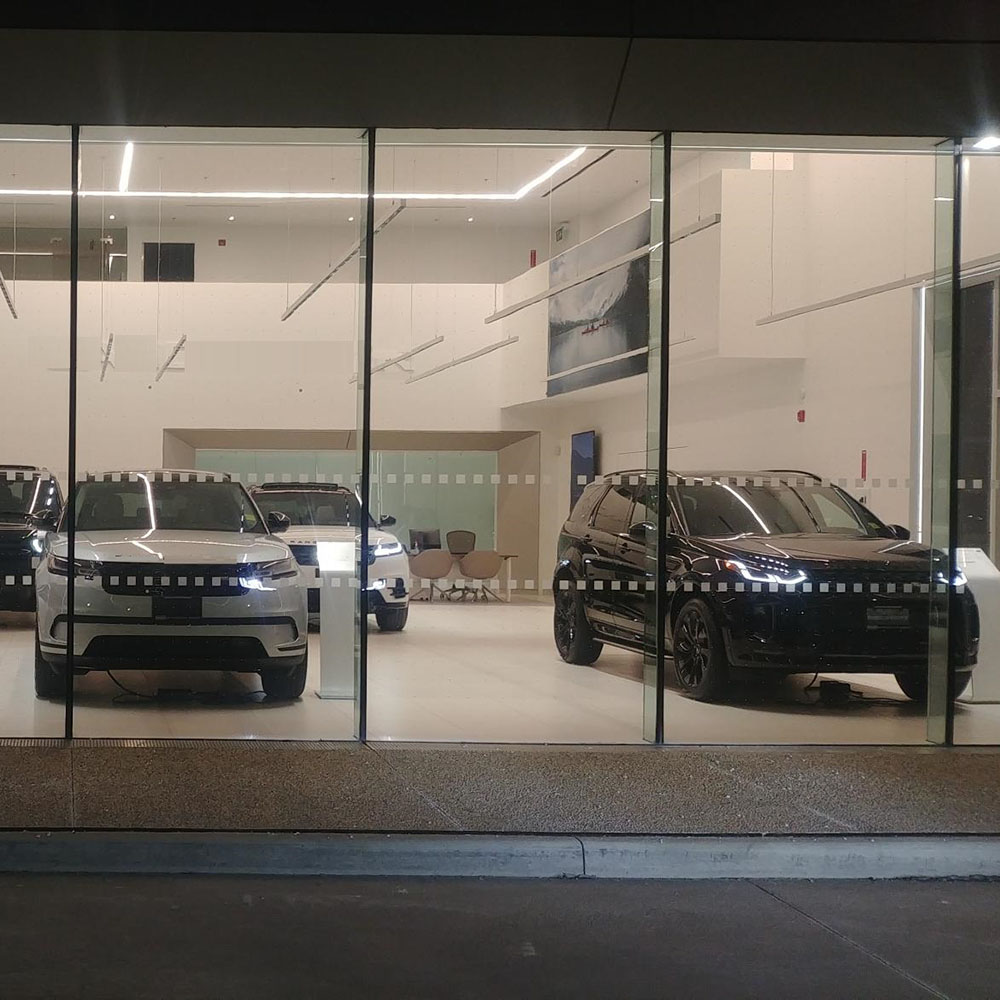

An efficient, discreet and user-friendly charger that keeps your vehicles fully charged, without the customers noticing.

Art. nr: 713600
Clear

Description

ShowroomCharger 40-50A represents the latest in charging technology. It is built with modern Switch-Mode technology, has a 95% efficiency and uses a 7 step charging curve that optimizes battery performance and longevity. It’s compact and has detachable cables that you can can run through the engine compartment. You can place the charger under the car or hood, out of view for your customers. Rubber feet and corners are available for further protection. Easily upgrade the software via the separate USB port.

ShowroomCharger 40-50A has a 14.7V button and a lithium button that can be pressed to adapt the charging curve to the battery type.

Features – ShowroomCharger 40-50A:

Very high efficiency – 95%
Optimal charging – 7 step charging curve
Upgradeable software – via separate USB port
Discreet design – black anodized aluminum
Discreet placement – detachable cables you can run through the engine compartment
No noise – no fan
Safe – spark and short circuit proof
No scratches or marks – rubber feet and corners are available

Read more about ShowroomCharger 40-50A.



Technical description

DEFA AS is conforming to the requirements of ISO 9001, ISO 14001 and ISO 45001. In addition to this, our engine heaters and cables are conforming to the requirements of IATF 16949.

Variant
713600
711300
Variant Input voltage Operating temperature Charging voltage Maintenance charging Charging current @ 120V Charging current @ 230V IP rating AC Power Cord DC Power Leads Dimension Weight Insulation class
2.5m/8.2ft charging cable 100-240V -20ºC/+40ºC or -4ºF/+104ºF 14.4/14.7V 13.5/13.6V 40A@14.4V 50A@14.4V IP5K3 5m/16,4ft 2,5m/8,2ft 28.0/17.5/8.5cm or 11.0/6.9/3.4in 3.8kg/8.4lbs I
5.0m/16.4ft charging cable 100-240V -20ºC/+40ºC or -4ºF/+104ºF 14.4/14.7V 13.5/13.6V 40A@14.4V 50A@14.4V IP5K3 5m/16,4ft 2,5m/8,2ft 28.0/17.5/8.5cm or 11.0/6.9/3.4in 3.8kg/8.4lbs I
