New! WorkshopCharger 40-50A

With detachable cables

Versatile and efficient battery charger and power supply with detachable cables.

Art. nr: 715800

Description

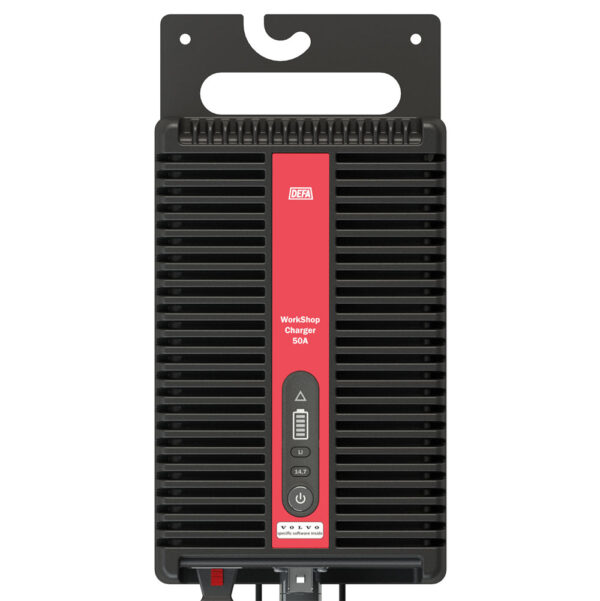

WorkshopCharger 40-50A is a versatile and efficient battery charger and power supply that helps you save time. It is delivered with a detachable charging cable, a wall bracket, and a hook that makes it easy to place wherever you need. The new WorkshopCharger is compatible with all types of automotive batteries – both lead/acid and Li-ion. It has no fan and produces no noise. The power supply function provides continuous current and stable voltage and helps you avoid losing data during ECU programming or a battery change.

WorkshopCharger 40-50A benefits:

User-friendliness

The hook and holder for the charging cable make the charger easy to move around and the intuitive interface and display makes it easy to use in all situations.

Optimal charging

The charger automatically compensates for the ambient temperature and can be used in both charging and power supply mode.

Silent operation

Thanks to an innovative fan-less design, the charger is virtually soundless.

Safety

WorkshopCharger 40-50A is non-sparking and is protected against reverse-polarity, and short-circuiting.

Flexibility

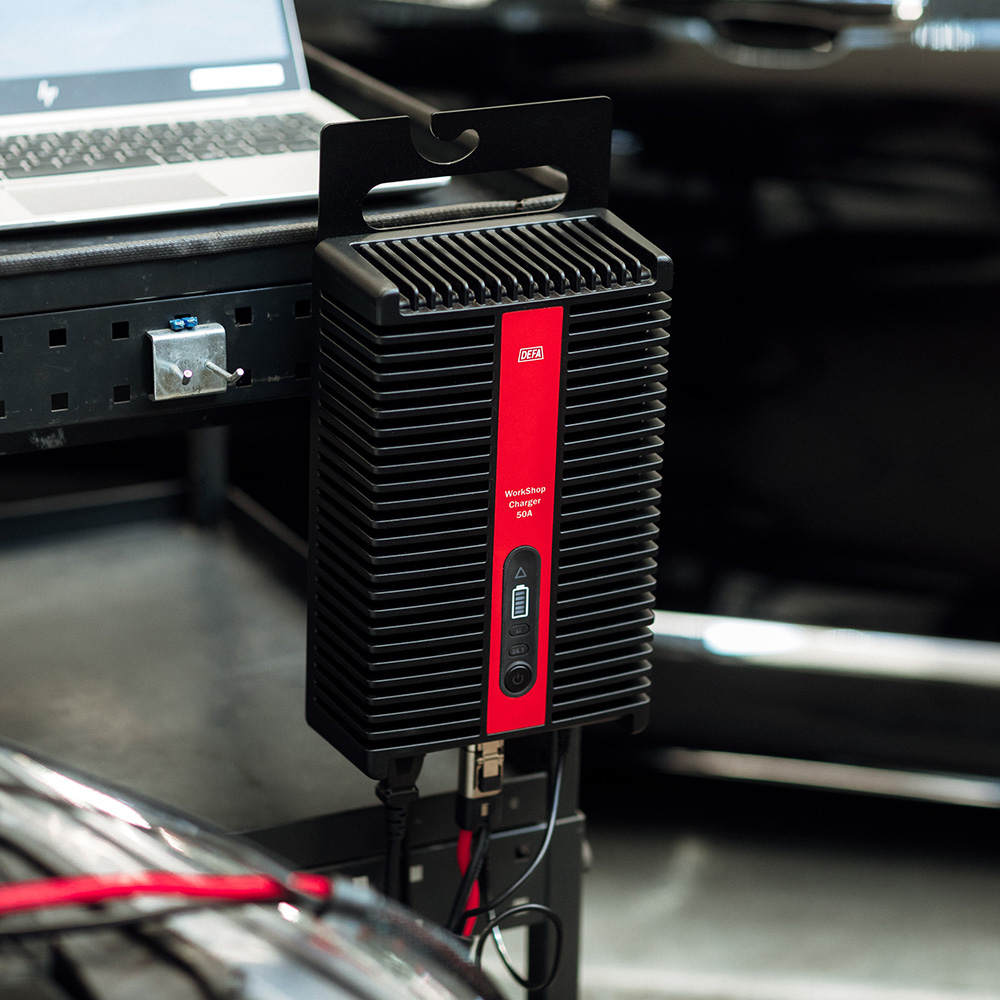

The detachable cables can easily be connected and disconnected to improve the user-friendliness of the charger. The charger can be suspended under the hood, from a side window or a workstation.

Durability

The charger is housed in heavy-duty materials and has an IP5K3 rating.

Technical description

WorkshopCharger 40-50A specifications:

DEFA WorkshopCharger 40-50A is based on modern switch-mode technology and maintains and promotes optimal battery performance and durability.

It is well suited to battery sizes up to approx. 600Ah and can maintain the battery charge for an unlimited time.

DEFA AS is conforming to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition to this, our engine heaters and cables are conforming to the requirements of ISO/TS 16949:2002

Spare parts:

  • 2.5m Charging cable – SKU: 711940
  • 5.0m Charging cable – SKU: 711950
  • 2.5m Power cable – SKU: 711533
Variant
Input voltage
Operating temperature
Charging voltage
Maintenance charging
Charging current
IP rating
Dimension
Weight
Insulation class
Certification(s)
5.0m charging cable
100-240V
-20°C / +40°C
14.4/14.7V
13.5/13.6V
50A
IP5K3
HWD: 280/175/85mm
3.8kg/8.4lbs
I
EN 60335-1, EN 60335-2-29, EN 61000-6-2 (EN 61000- 4-2, EN 61000-4-3, EN 61000-4-4) (EN 61000-4-5, EN 61000-4-6, EN 61000-4-11), EN 55011, EN 62233
